Freely adjustable angle insert with cone adapter (CA), rotationally adjustable, with M3 XXT connection
- Aplicación
- Conecta
- tipo de producto
- Elementos rotatorios
- Tipo de conexión
- M3 XXT
- Tipo de conexión
- M3 XXT
- Longitud (L)
- 12,0 mm
- Material
- Titanium
- Ø Cuerpo (DG)
- 5,0 mm
- Peso
- 1,0 g

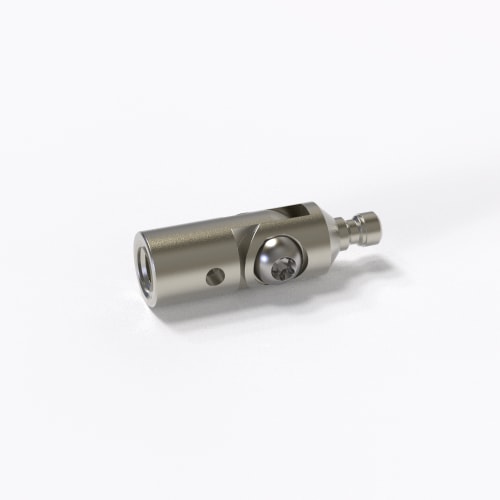

Junta de nudillos, rosca M3 XXT, flexión, titanio, L: 12
Product note
ZEISS rotary elements are specially developed for the high demands of production measurements. Their special design clearly distinguishes them from similar products on the market. The special tolerance combinations between the locating cones ensure maximum rigidity through a force AND form fit. In combination with the special arrangement of the 3 clamping screws, which pull the swivel into the holder, maximum torsion resistance is achieved without having to apply large clamping forces. This means that the swivel elements can be used several times in different angular positions without being damaged by the clamping.
